ZP-LED-P20B(3L) Lightning Surge Protector for Outdoor Lighting System with 5 Years Warranty

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Guangdong ZP Lightning Protection Technology Co., Ltd.
[China]

Address
Renju Road Dongguan Guangdong
Phone
86-189-38590758
Contact name
Ava Chen

Quick Information

  • Brand Name: ZP
  • Place of Origin: China
  • Model Number : ZP-LED-P20B(3L)
  • :

Description


The Necessity



ZP lightning protection can provide a full range of LED outdoor lighting system special surge protective devices. The product can be installed in LED lampshade or control cabinet. It is widely used in LED street lighting, tunnel lighting, floodlighting and other outdoor lighting systems.



Product Description



ZP Surge Protective Device is a transient overvoltage protection device, which specially designed for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube. The built-in thermal disconnection function can prevent catastrophic faults and fire accidents in extreme cases of breakdown and short circuit of varistor. The product is connected to the AC side of the LED power driver, providing reliable lightning surge protection for lighting system and effectively prolonging the service life and stability of light fixtures.

Application:

Outdoor and LED Lighting

Roadway lighting

Traffic lighting

Digital signage

Wall wash lighting

Parking garage lighting

Flood lighting

Tunnel lighting

Street lighting

AC-LED lighting



Electrical Specification





Part Number

ZP-LED-P20B(3L)

Operating Voltage/Un

100~277VAC

Maximum Continuous Operating Voltage/MCOV

320VAC

Nominal Discharge Current/In

10kA8/20us

Maximum Discharge Current/Imax

20kA8/20us

Open-Circuit Voltage/Uoc

20kV1.2/50us

Voltage Protection Level/Up

1.5kV(L~N\L~PE\N~PE)

Wire for Terminal

RV1.5mm2

Operating temperature range

-40~+85

Ingress Protection

IP67

Test Standard

UL14494th/IEC61643-11/EN61643-11

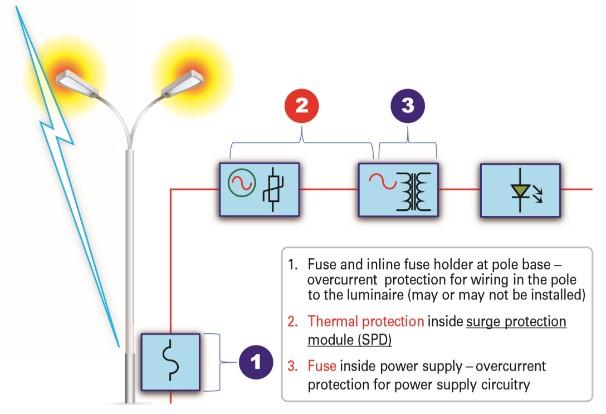

LED street light protection scheme

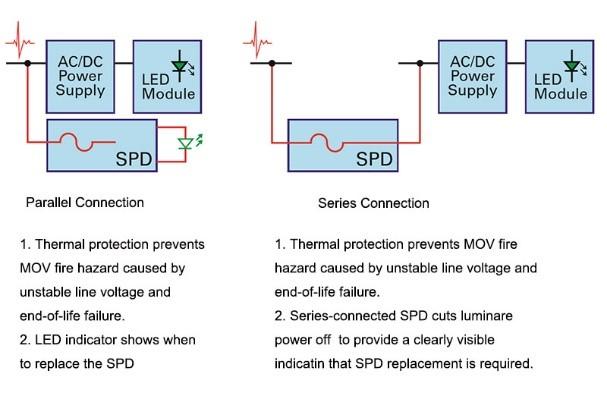

Parallel Connection and series connection

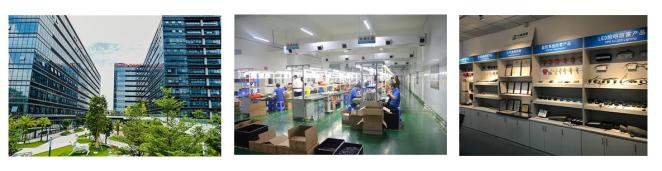

Company Profile


Founded in 2011, Guangdong ZP Lightning Protection Technology Co., Ltd., formerly known as Shenzhen Zpwy Technology Co., Ltd., has 10.1 million Yuan registered capital. ZP is a national high-tech enterprise specializing in the research and development, production, sales and lightning protection of lightning protection products. With the stable and reliable quality of our product, we have won a lot of praise and trust from our customers at home and abroad.



Corporate Culture



We uphold the corporate culture of integrity and loyalty, learning and innovation, responsibility-taking and harmonious-sharing as well as the philosophy of customer-centric, employee-oriented, and pursue a win-win situation for employees, the company, customers and society. We treat customer demand as our top priority, takes technical innovation as drive, relies on quality assurance system and keeps its technology and services leading among peers, It is our mission to create a safer environment and reduce risk factors and bring safety to the world.





Exhibition



Certifications



Our company has our own independent intellectual property rights and strictly operates in accordance with the ISO9001 quality management system and IS014001 environmental management system. And our products have passed TUV, CE, UL and other international certifications, complying with EU RoHS environmental protection requirements.


FAQ



Q1: Is the sample available and free?

A1: Sample is available, but the sample cost should be pay by yourself. The cost of sample will be refund after further order.

Q2: Do you accept customized order?

A2: Yes, we do. OEM and ODM are accepted.

Q3: What's the delivery time?

A3: It usually takes 7-15days after confirming payment, but specific time should be based on the quantity of the order.

Q4: What are the terms of payment?

A4: The payment we can accept is payment against delivery, or 50% deposit, and the remaining 50% should be paid before delivery.

Q5: Quality warranty?

A5: The product warranty is five years. If any problem happens, please contact our after-sales staff, we will give you the optimal solution.

Q6: What are the modes of transport?

A6: we can provide shipping and air transportation according to customer's requirements.

Q7: Are you a lightning surge protectors factory or lightning surge protectors trading company?

A7: We are lightning surge protectors manufacturer.



Contact Info





Price

  • Delivery Port : Shenzhen Yantian

Packaging & Delivery

  • Packing :10 pieces per box 10 boxes per carton
  • Packaging Size : 42.8 x 22.2 x 20.5  Centimeters
  • Package Weight : 11  Kilograms
  • Delivery Lead Time : 7 to 15 days
  • Supply Ability : 10000 per week
